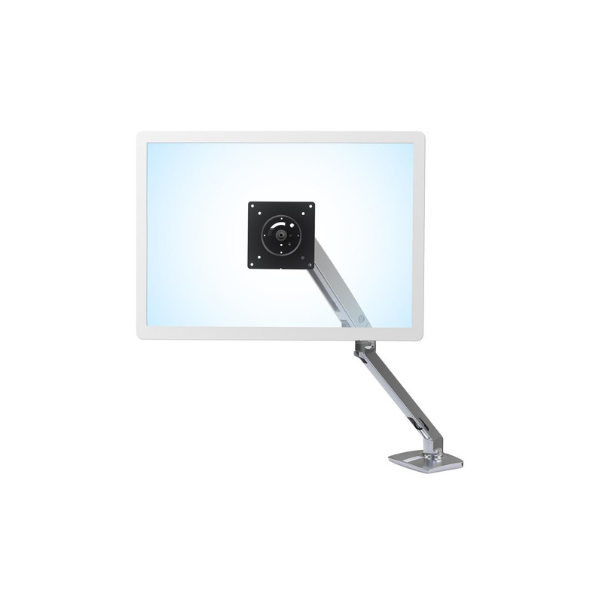

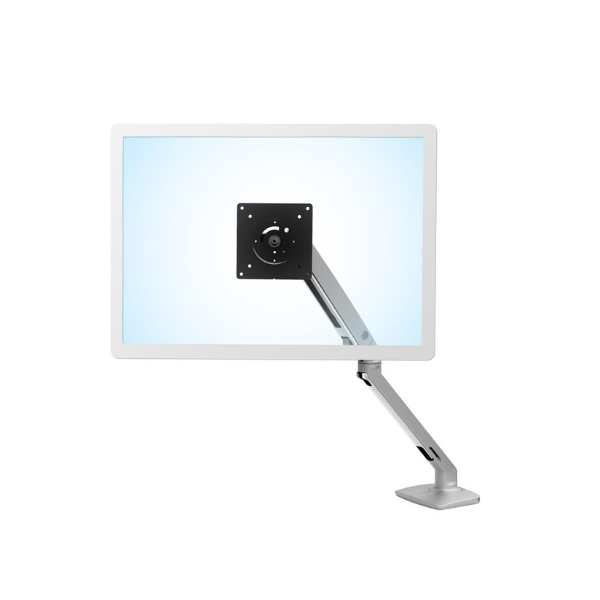

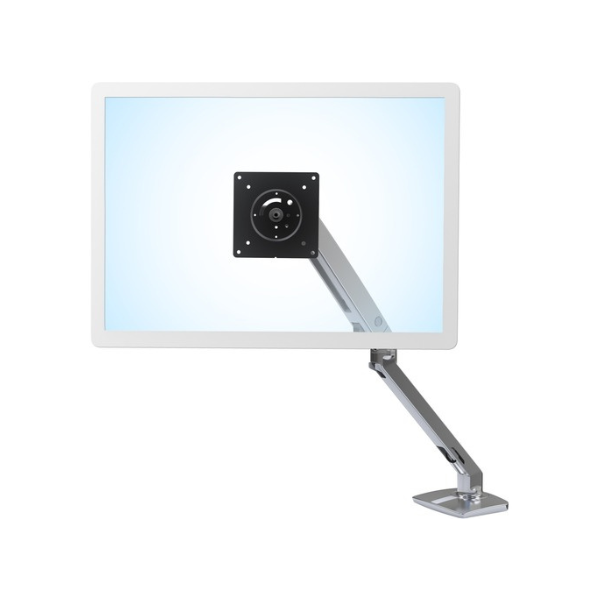

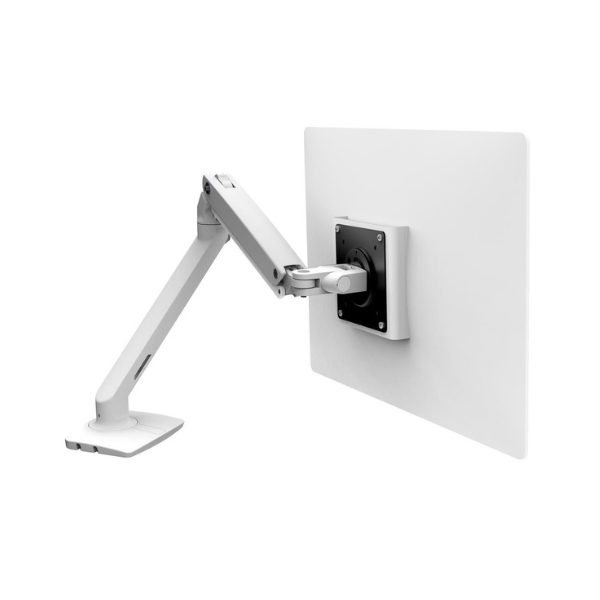

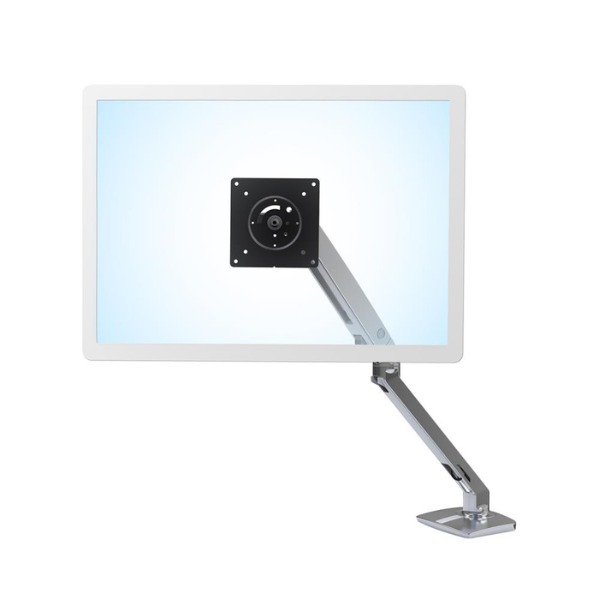

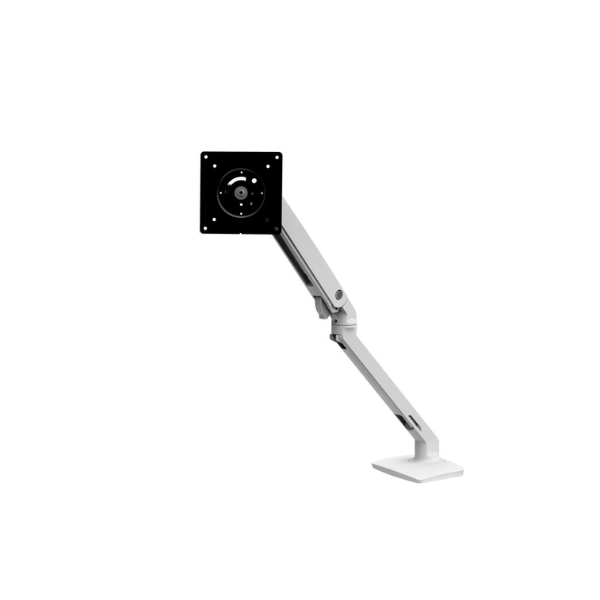

Introducing the Ergotron MXV Monitor Arm, add style to your desk without sacrificing functionality. The sleek and lightweight MXV incorporates a modern V-shaped design with proven engineering to create a stable yet flexible platform for your screen.
With a slim profile, MXV offers 13" (33 cm) of height adjustment, integrated tilt and more—all on a convenient swivel base. The arm’s adjustability helps increase viewing comfort, while its upscale finish leaves a stylish impression.
Works great with the WorkFit TL
Ergotron MXV Monitor Arm Features
- Saves valuable desk space with the cable management system and narrower profile—25% slimmer than the LX arm
- Allows you to easily adjust your display with a light touch thanks to patented Constant Force™ technology
- Creates additional flexibility with a friction pivot that offers a 180-degree tilt
- Supports displays weighing 7 to 20 lbs (3.2 to 9.1 kg)
- Monitor can extend out up to 22.2" (56 cm)

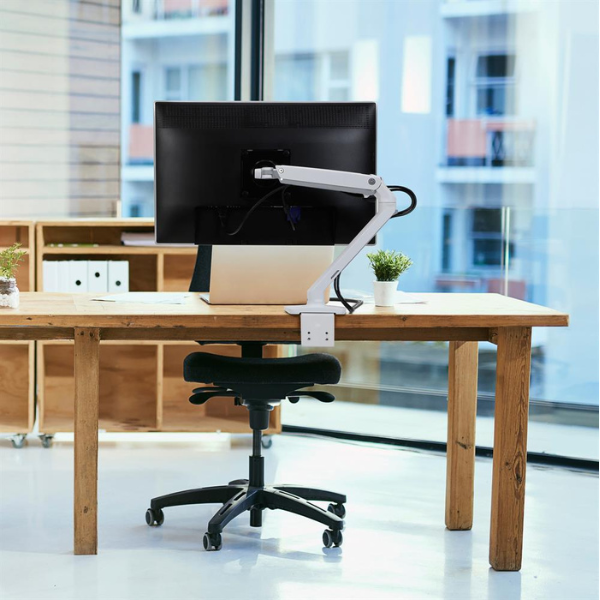

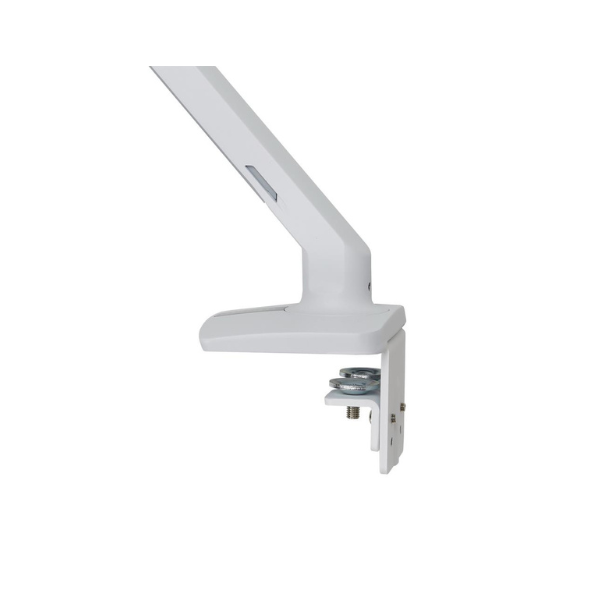

- Sits securely on your workstation with a low-profile desk clamp base that can fit in tight places
- Keeps your monitors within your desk space with a solid rotation-stop, perfect for call centers and back-to-back desks
- Prevents your arm from making contact with the wall with the base’s rotation-stop, which limits its range to 180 degrees ‡
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
- Arrives fully assembled for you to easily attach to your desk, add your monitor and adjust the tension
- Description: MXV Desk Mount LCD Monitor Arm

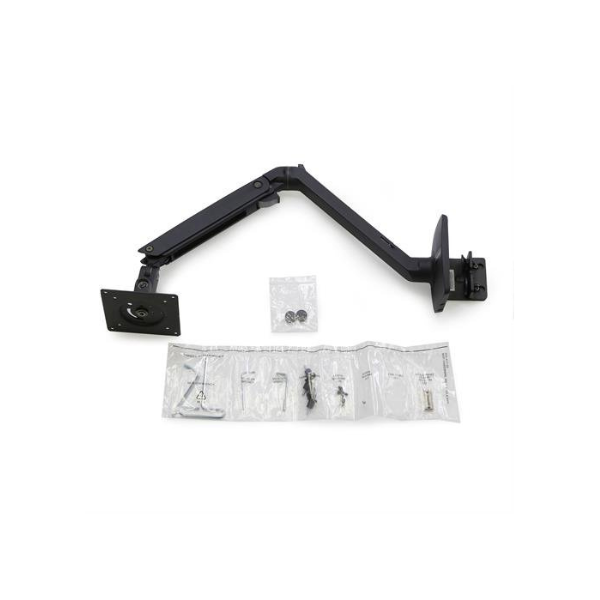

- Includes fully assembled arm, two-piece desk clamp, mounting hardware
- Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
- Mounting Options: Desk Clamp attaches to surface edge .47" to 1.25" (12 to 32 mm) thick
- An accessory Grommet Mount is available to install arm to desk via a through-hole in its surface: order 98-110
- Desk clamp has anti-rotation screws to prevent base from slipping
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- † Tilt Range: 90° backward, 90° forward
- ‡ Pan Range: 180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to a full 360°
- Extension Range: 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate
- Product Weight: 6.4 lbs (2.9 kg)
- Shipping Dimensions: 34.4" x 9.3" x 7.3" (87.5 x 23.5 x 18.5 cm)
- Shipping Weight: 7.5 lbs (3.4 kg)
- Warranty: Ten (10) years
CAPACITY 7–20 lbs - 3.2–9.1 kg
LIFT -13" 33.0 cm
TILT -180° †
PAN -360° ‡
What's The Warranty Period?
- 10 years limited
DOWNLOAD Product Information Sheet
DOWNLOAD Dimensional Illustrations
DOWNLOAD Installation Manual
